Stipple: Real-Time Incremental Gaussian Splatting with Visual-Inertial Tracking

Abstract

3D Gaussian Splatting (3DGS) provides efficient rendering of photo-realistic scenes, but its heavy preprocessing and training steps make it a poor fit for applications that require real-time reconstruction in robotics or XR. This capability is important since it allows immediate feedback and interaction with new environments. Visual-inertial odometry (VIO) and simultaneous localization and mapping (VI-SLAM) systems, on the other hand, specifically target real-time applications, which makes them a good choice for integration with 3DGS.

We propose a new method that tracks and reconstructs simultaneously in real-time by leveraging an efficient visual-inertial tracking system based on Basalt together with a novel incremental method built on top of Brush, an efficient Rust-based GPU-vendor-agnostic implementation of 3D Gaussian Splatting. We show that many of the heavy preprocessing and training steps of 3DGS can be replaced with a more efficient incremental training strategy that has direct access to the information generated by the visual-inertial tracking system. Furthermore, we propose and combine multiple practical improvements to increase the efficiency of the training pipeline and adapt it to run in real-time, parallel to the tracking thread. This work highlights the value of exploiting the complementary nature of SLAM and 3DGS, and how that can lead to promising results for real-time 3D reconstruction.

What's new

Videos

Method

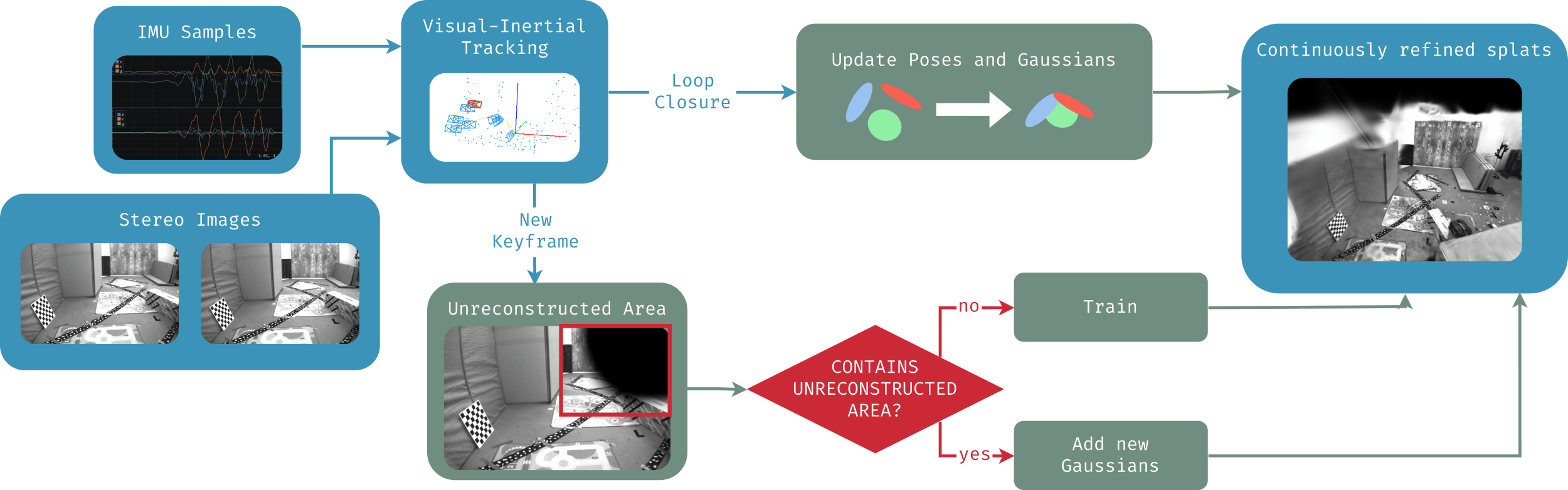

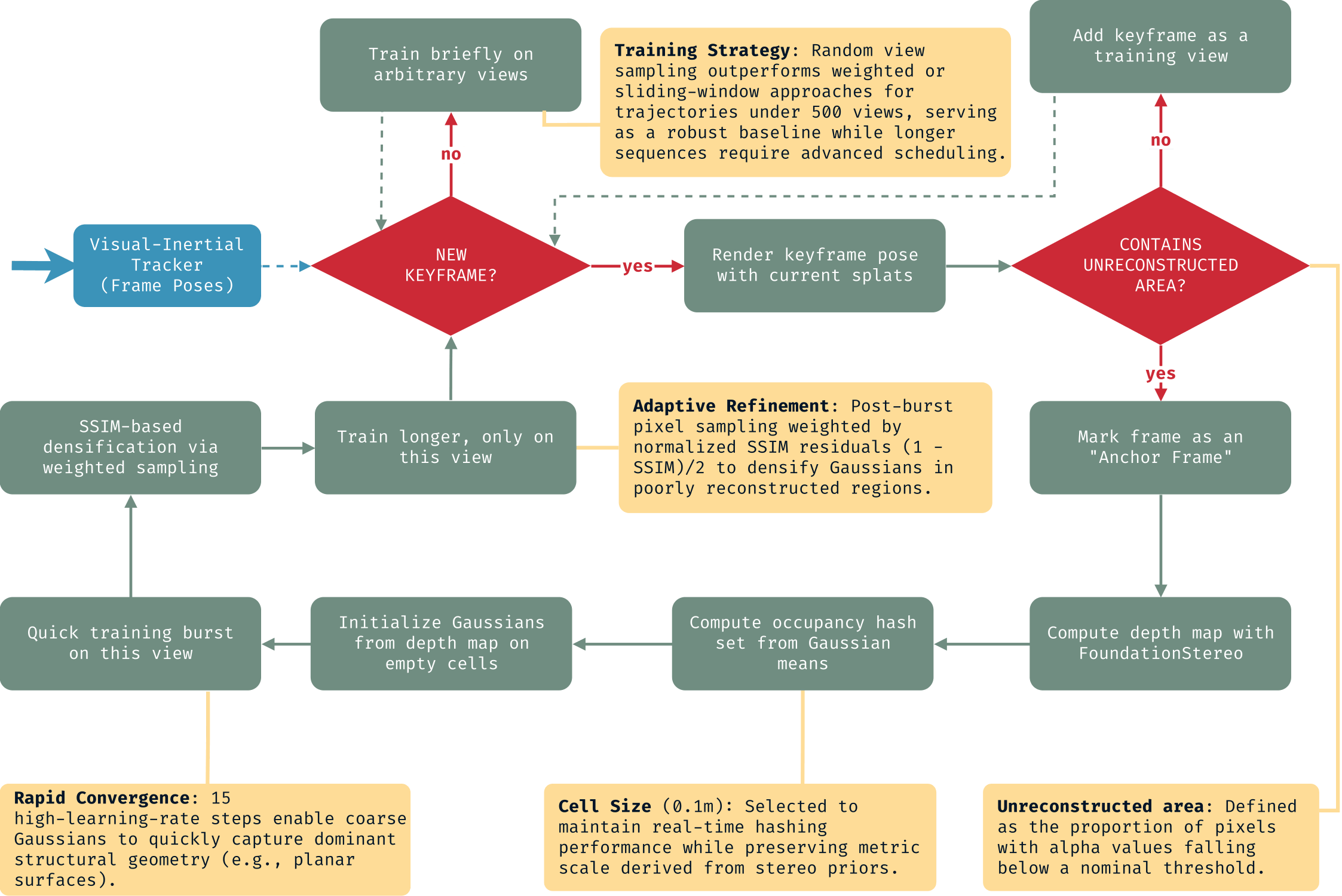

Basalt tracks every incoming stereo-inertial frame; images are undistorted and stereo-rectified with OpenCV. Gaussians are only ever created from Basalt keyframes. Before a keyframe is committed, the current map is rendered from its pose and scored for coverage: if the fraction of pixels with alpha below 0.05 exceeds a threshold, the keyframe becomes an anchor frame, it gets a stereo depth map and seeds new Gaussians. Otherwise it simply joins the pool of views used for ongoing optimization. Because stereo depth (FoundationStereo by default, BM / SGBM-WLS as fallbacks) is the pipeline's main bottleneck at ~150 ms per call, restricting it to the ~10% of keyframes that are anchor frames is what keeps the system real-time.

Adding Gaussians from an anchor frame

1. Depth-based seeding. A metric depth map is back-projected with the known intrinsics and the anchor pose into a dense set of candidate Gaussian means. 2. Occupancy pruning. Candidates that fall in already-reconstructed regions are discarded using a CPU-side occupancy hashset over a 0.1 m uniform grid. 3. Burst fit. A short high-learning-rate optimization burst on the new anchor view alone shows how well the sparse seed already explains the image. 4. SSIM-based densification. Per-pixel SSIM between the rendered and observed anchor view drives how many Gaussians to add, n_add = MAX_SAMPLES · (1 − mean SSIM) / 2, sampled at locations weighted by 1 − SSIM, so densification targets exactly the small, badly reconstructed regions. 5. Convergence. A longer training interval on the anchor view lets the new Gaussians settle.

Loss

The total loss combines the original 3DGS L1 and SSIM terms with an inverse-depth L1 term on anchor views, an anti-needle regularizer that pushes covariances toward isotropy (highly anisotropic Gaussians near the reconstruction border otherwise make the render foggy), and a scale regularizer that penalizes over-large Gaussians, introduced to curb a subset of Gaussians exploding in size on the EuRoC Machine Hall sequences.

Loop closure

Loop detection and pose-graph correction are handled entirely by the visual-inertial tracker. When a correction arrives, every keyframe's stored pose is updated. Only anchor frames own Gaussians, so only their Gaussians receive a geometric update: the same rigid transform applied to the anchor pose translates each Gaussian's mean and rotates its covariance. Keeping every anchor frame's Gaussians contiguous in memory makes this a simple sequential operation.

Results

Evaluated on EuRoC and the Monado SLAM Dataset (MSD), best of 3 runs per method at equal running time, on a Ryzen 9 9950X with an RTX 5060 Ti (16 GiB). Tracking accuracy (ATE/RTE) is governed entirely by the underlying tracker and is not reported here.

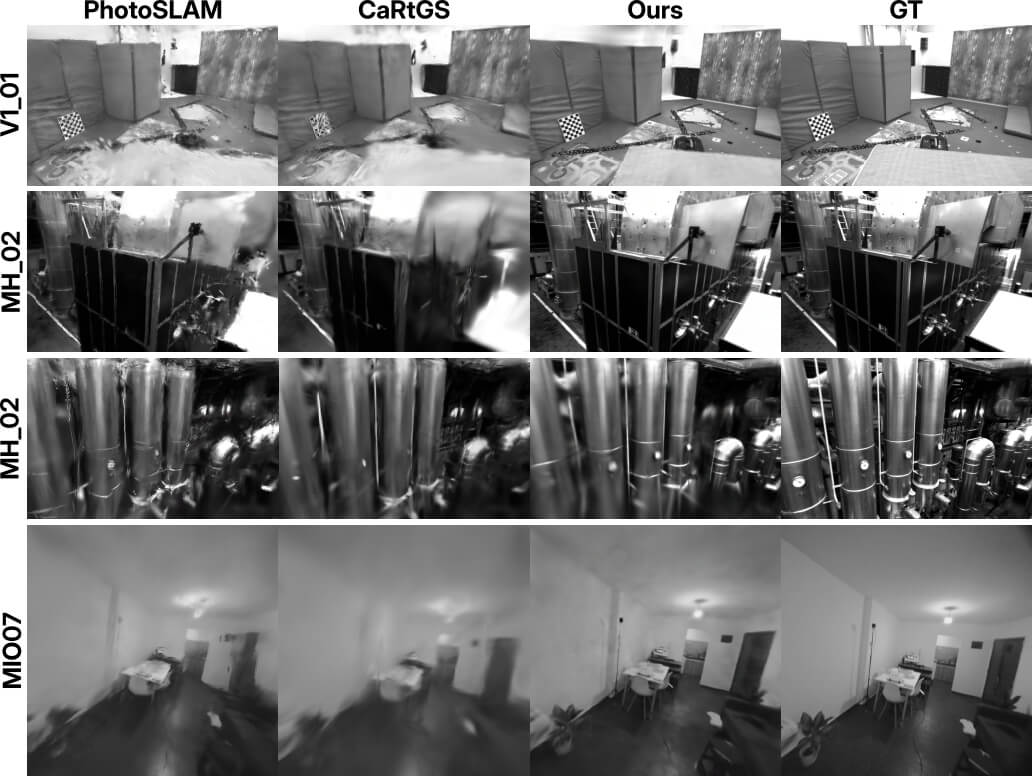

Across the MSD headsets, Stipple attains the best average PSNR, LPIPS and tracking FPS at roughly a third of the peak GPU memory of either baseline, and is the only method to complete several sequences, all four HP Reverb G2 (MGO) scenes and every Samsung Odyssey+ (MOO) scene, where Photo-SLAM and CaRtGS fail to produce a usable result.

The one regression. On EuRoC Machine Hall, CaRtGS leads on PSNR/SSIM (21.80 / 0.76 vs. our 19.48 / 0.70). The SSIM-based densification criterion over-triggers there, adding far more Gaussians (394k vs. 118k) than the real-time budget can converge; the scale-regularization loss partially compensates but does not close the gap. We treat this as a stop-gap rather than a solution and leave a principled fix, a densification budget or an improved occupancy criterion, to future work.

Citation

@article{northoff2026stipple,
  title   = {Stipple: Real-Time Incremental Gaussian Splatting with Visual-Inertial Tracking},
  author  = {Northoff, Kilian and de Mayo, Mateo and Cremers, Daniel},
  journal = {arXiv preprint arXiv:2508.00088},
  year    = {2026}
}

Acknowledgements

Supported by the European Research Council (ERC) Advanced Grant SIMULACRON, by the DFG project CR 250/26-1 “4D-YouTube”, by the GNI Project “AI4Twinning”, and by the Munich Center for Machine Learning.
